Fume Cupboard

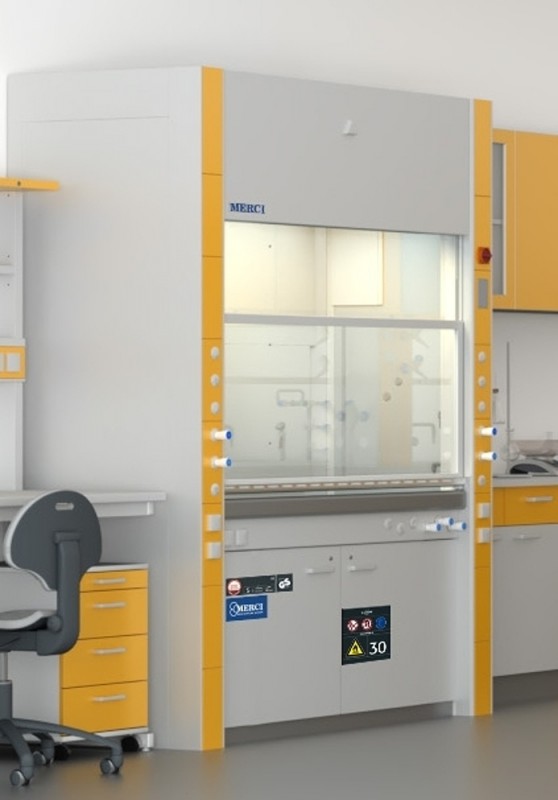

Fume Cupboard MERCI^® G

Digestoř MERCI® G s plně osazenými ovládacími panely

Fume Cupboard

Fume Cupboard MERCI^® G

The fume cupboards MERCI^® G integrate the newest elements of technological development and fulfil all European standards. Assortment of fume cupboards MERCI^® G includes from user-simple designs with mechanical sash window and manual control through electrically controlled fume cupboards to the so-called intelligent fume cupboards. The highest level of design of fume cupboards MERCI^® G communicates with regulation systems MaR of buildings. A fume cupboard control unit in connection to a movement or position of the working sash window regulates dynamically the volume of exhausted and supplied air from and to the laboratory.

For different environments

We make fume cupboards MERCI^® G based on your requirements not only for general use but also for increased resistance against acids and alkalis, solvents or high temperature. Improved utility properties of the inside space of fume cupboard can be achieved by an interior space lining made of resistant materials completed with a wide range of fume cupboard worktops. Fume cupboards MERCI^® G can be modified for working in the environment with a risk of explosion according to ATEX 94/9/EC directive, or equipped with a special bottom exhaust for working with heavy gases.

Basic material

The basic material of laboratory fume cupboards MERCI^® G is steel sheet provided with protective coating preventing corrosion and mechanical damage. Aesthetically and in light of design the fume cupboards MERCI^® G are finalized with electrostatically applied epoxy powder coating.

Certification

Fume cupboards MERCI^® G are certified in compliance with EN14175 according to valid EU legislation and they are provided with the CE mark. Fume cupboards MERCI^® G have a valid certificate documenting completed tests of intrinsic noise level in compliance with hygiene regulations. Values of tests of releasing of hazardous substances from fume cupboards based on EN 14175 or pressure loss tests correspond to requirements specified by the standard.

Accessories

Inquiry

Technical Specification

Fume Cupboard

Fume Cupboard MERCI® G

Basic parameters fume cupboards MERCI^® G

Fume cupboard with	1200, 1500, 1800, 2100 mm
Fume cupboard depth	900 mm
Fume cupboard height	2500 mm
Worktop height	500, 900 mm
Worktop - materials	solid ceramic, glass, acid-resistant ceramic tiles, stainless steel AISI 316, high pressure laminate (HPL)
Worktop - width	1195, 1495, 2095 mm
Types of interior space lining	solid ceramic, glass, stainless steel AISI 316, polypropylene, high pressure laminate (HPL)

Optional fittings with media

A number of options of fitting and valves with media will meet almost any requirement, and this can be changed variably thanks to a flexible service cassette system of the front side of fume cupboard. The same wide possibilities are provided in the case of constructional connecting of fume cupboards to media distributing lines inside the building.

Control

Electronic controlled fume cupboards MERCI^® G are equipped with an optoelectronic safety bar. In the case of special applications, it is also possible to equip fume cupboards MERCI^® G with foot-controlled moving of the working sash.

Download

Fume Cupboard

Fume Cupboard MERCI® G

pdf [1.6 MB]
